Simple Home Alarm System

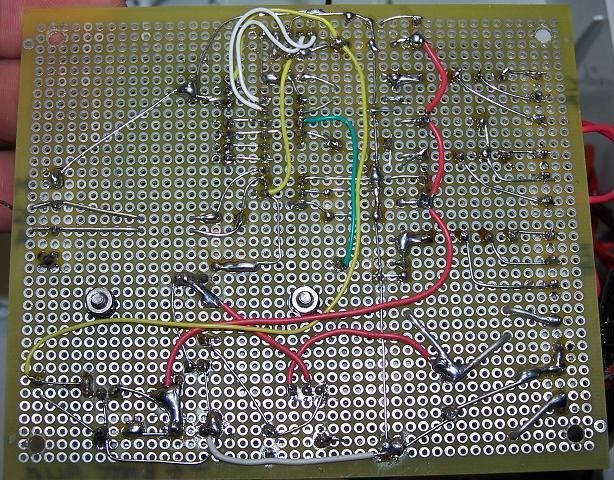

This Home Alarm System is simple, secure, fast and cheap. It's only few components with maximum security with Rolling Code TX and Shock Sensor with variable sensitivity. The alarm module can be assembled in only 2 hours and it don't need manual preset.

Home Alarm System with this characteristics is the most cheap system and the total cost could be reduced using a normal external sounder (escl. AG8).GSM module will be add in the future for a remote control.

The blue led connected to the pin RA3 of micro controller is used like a memory to know if the home alarm system has been activated by an event and its reset after a reactivation. The red led connected to the power supply before the 1N5406 diode is used to check the power supply connection. Of course the other 3 micro led red near the relays are used to check the output state.
